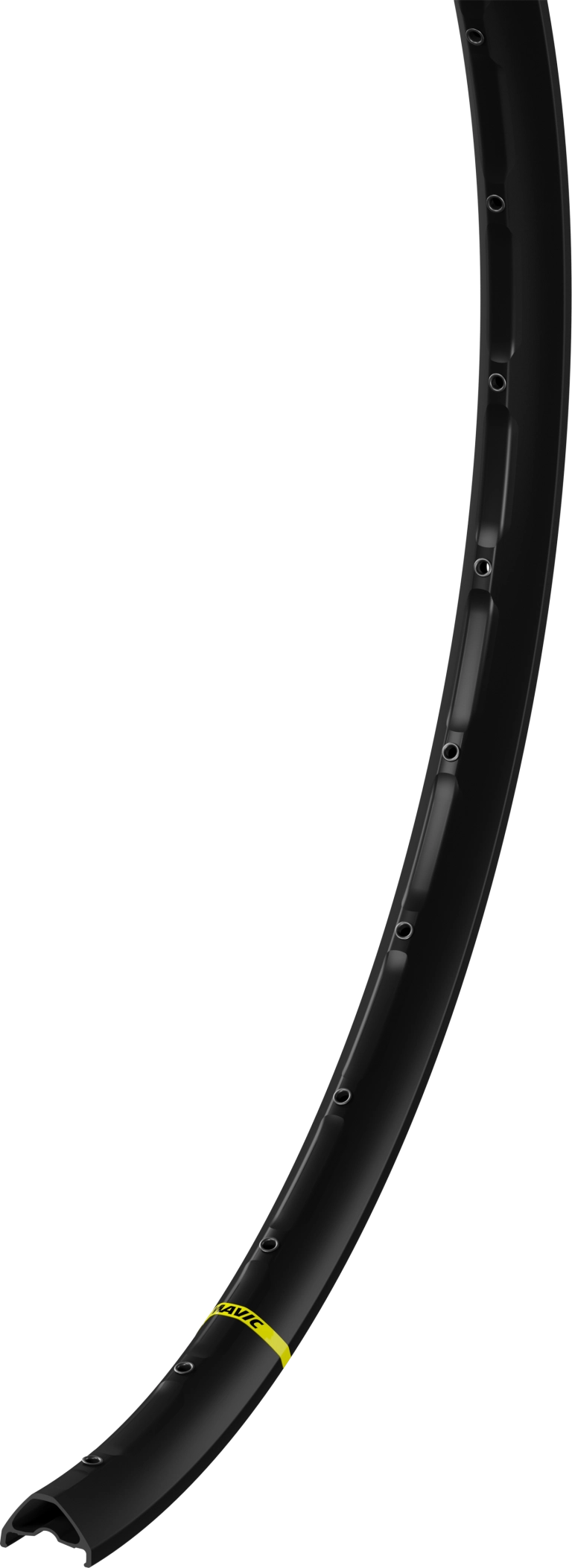

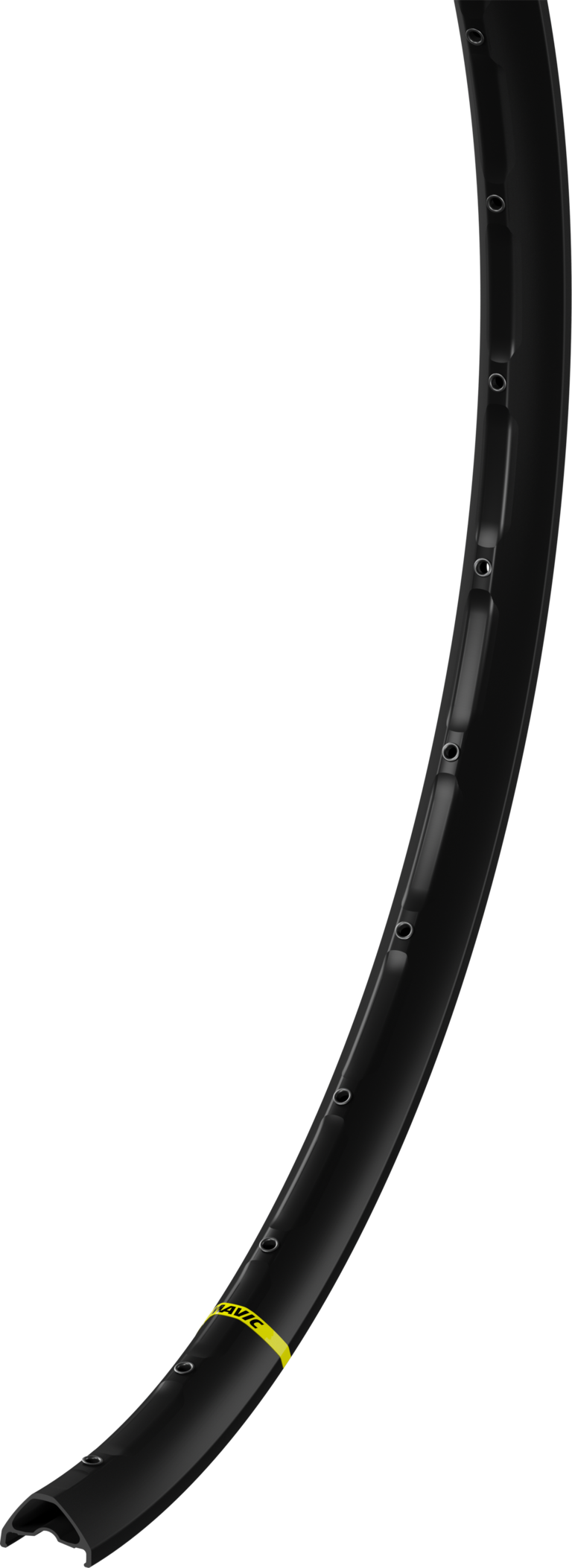

EX 1028 DISC 29
EX 1028 is the latest version of Mavic gravity rims, and as such is the most strong and durable rim profile ever created.
Offering both lightweight and a wider 28mm profile, this welded rim features a crochet type profile and was designed to absorb big impacts—from hard-hammering rocks to hard landings and big compressions.
Optimized up to the limit of material potential, EX 1028 is our premium gravity-oriented rim.

Available in 28 and 32 holes, 27,5” and 29”.

Main features

Hammer through rough terrain with confidence

Wider 28mm (internal) rim is engineered to absorb heavy impacts. Triangular rim shape absorbs heavy impacts so you're free to bomb the descents

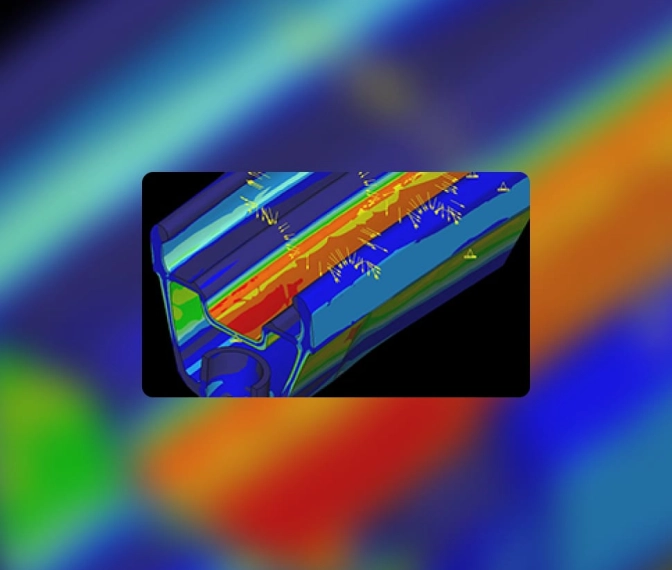

Proven by evidence

Developed, tested and proven to meet the standards of DH racers and ready for hardcore bike park shredders or big mountain enduro riders.

Increased grip and excellent stabilty

28mm wide rim profile is optimized for modern gravity tire

Specifications

  • Weight : 620 g
  • Material: Maxtal
  • Braking: disc
  • Profile: asymmetrical
  • Spoke bed diameter: 597 mm
  • Joint: SUP welding technology
  • Drilling: traditional with eyelet
  • Height: 20 mm
  • Internal width: 28 mm
  • ETRTO size: 622x28TC
  • Tire: UST Tubeless Ready - Use with Mavic Tubeless Tape
  • Valve hole diameter: 6.5 mm
  • Tubeless tape width: 32mm (not delivered with the rim)
  • Recommended tyre width: 47 to 64 mm

Key technology

LightnessMaxtal aluminum alloy
Light and strong Exclusive to Mavic, this specific aluminum alloy offers a higher strength to weight ratio than conventional 6106 alloy.
LightnessISM light rim technology
Inter Spoke Milling An exclusive Mavic patented concept, ISM involves the machining of the lower bridge of the rim between each spoke hole to create a light and rigid rim without reducing the durability of the rim.

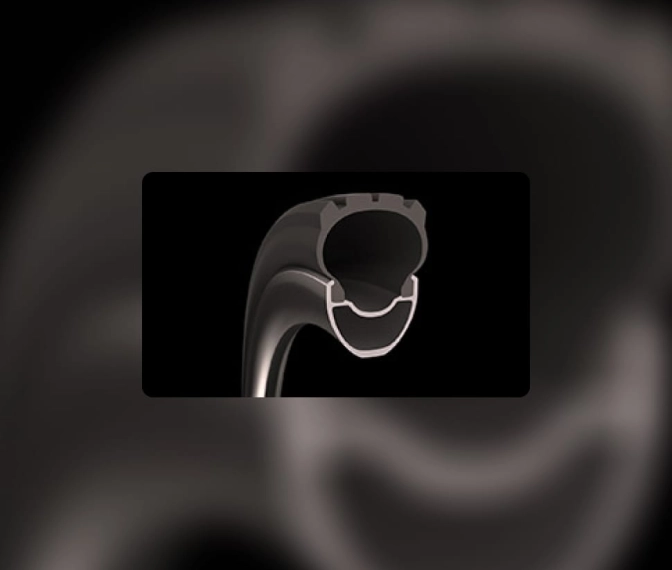

Efficiency RigidityUST tubeless technology
Traction and control Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort while reducing inertia and flats.

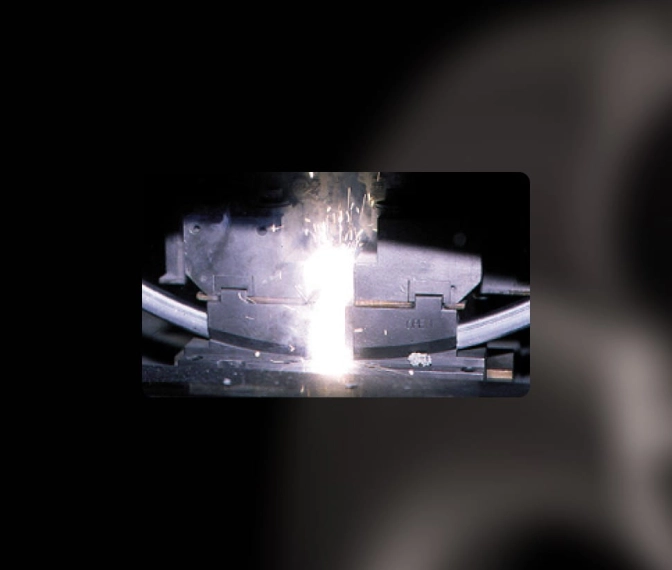

Safety ReliabilitySUP welding technology
Stronger and smoother joint Soudé Usiné Process. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.

EX 1028 DISC 29
