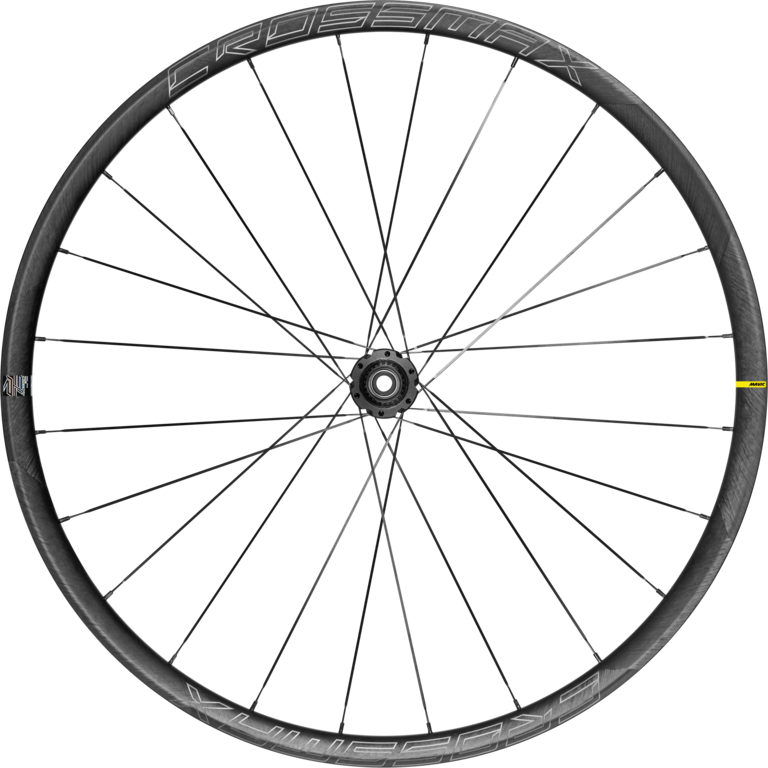

Name: CROSSMAX SL R CL 29 BST MS
Brand: Mavic
SKU: R4122115
Price: 8600 EUR
Availability: InStock
Rating: 4.8 (293 reviews)

If high-intensity cross-country is your game, this is your wheel. Engineered around a 25mm wide rim, the Crossmax Carbon SL R 29 is made for modern XC riding and racing. The full carbon rim delivers lightning-fast acceleration and helps you float up technical climbs, and it has just enough vertical compliance to help you nail every line with precision and control. The external carbon layer features our new UD² construction for a distinctive look and added durability.

The 25mm inner width is designed to pair well with any modern XC tire. The rim is laced with 24 straight-pull, double-butted spokes to help achieve a perfect balance between lateral stiffness and vertical compliance. We created a lighter weight hub infinity that, combined with the rim stiffness and strategic spoke lacing, maximizes your pedaling forces for superior power transfer.

Our Instant Drive 360 freewheel with a double ratchet system provides fast engagement so you can sprint and accelerate out of corners faster. The rear hub is compatible with Shimano HG9, Micro Spline and SRAM XD driver bodies. The Crossmax SL R is available with 6-bolt or center lock brake rotors in 29” only and is compatible with a 15x110 front axle and 12x148 rear. The wheel is delivered with valves, replacement spokes and accessories.

Main features

Hammer up technical climbs with less effort

Lightweight full carbon UD² rims.

Precise handling and compliance on aggressive XC terrain

Enhanced carbon fiber rim laced with 24 straight-pull spokes. Laterally stiff and vertically compliant feel on the trail.

Efficient power transfer

Lighter, stiffer Infinity hubs with ultra-reliable ID360 dual ratchet freewheel system for instant acceleration.

Specifications

Weight Pair : 1570 g
Weight Front : 720 g
Weight Rear : 850 g

Material: 100% carbon fiber with UD external layer
Height: 25 mm
Internal width: 25 mm
Drilling: traditional (front/rear 24 holes)
Braking: disc
Profile: asymmetrical and hookless
ETRTO size: 622x25TSS
Tire: UST Tubeless Ready - Use with Mavic Tubeless Tape

Material: steel
Shape: straight, extra-flat, constricted, antirot (front and rear)
Nipples: steel, ABS, black
Lacing: crossed 2 (front and rear)

Body material: aluminium
Body design: INFINITY
Disc standard : 6 Bolts or Center Lock®
Axle material: aluminum
Axle size: front 15x110 / rear 12x148
Freewheel technology: Instant Drive 360
Freewheel: Shimano MS / Sram XD MTB
Bearing technology: QRM automatic setting - sealed cartridge

Freewheel body: convertible SHIMANO HG MTB aluminium (kit V3780101 sold separately)
Freewheel body: convertible SHIMANO HG MTB steel (kit V3790101 sold separately)
Front axle adapters: 15x110 convertible to 9x110 (kit 99694101 sold separately)
Front axle adapters: convertible to 15x31mm with Torque Cap (kit V2374401 sold separately)
Rear axle adapters: 12x148 convertible to 9x141 (kit V2510801 sold separately)

User guide
Rim tape mounted on wheel
UST valve not mounted on wheel
2 replacement spokes with each wheel
Multifonction adjustment wrench with the rear wheel

Minimum tyre size: width 30mm - pressure max. 4.05Bar/59PSI
Maximum tyre size: width 64mm - pressure max. 2.45Bar/36PSI
ASTM category 3 : cross country
Maximum weight supported by the wheels: must not exceed 150 Kg (bike weight included)

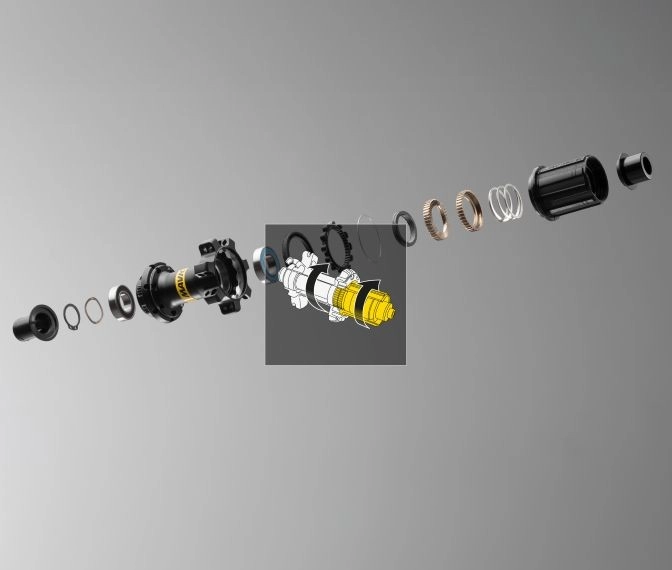

Efficiency RigidityInstant Drive 360 freewheel technology

The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

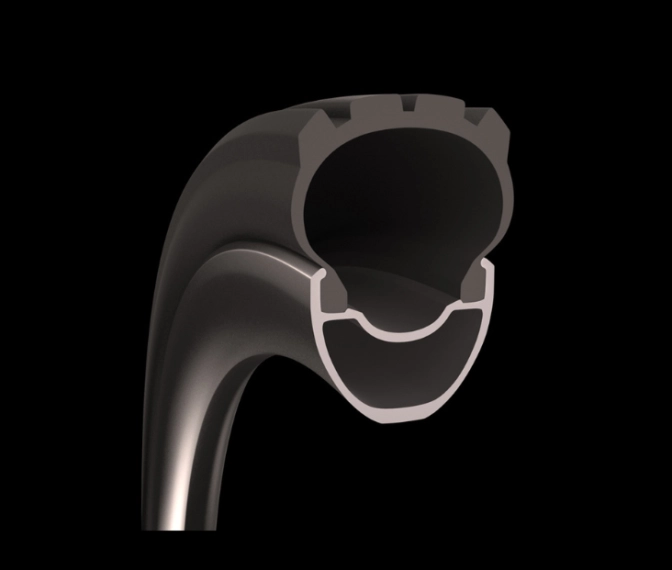

Efficiency RigidityUST tubeless technology

Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.

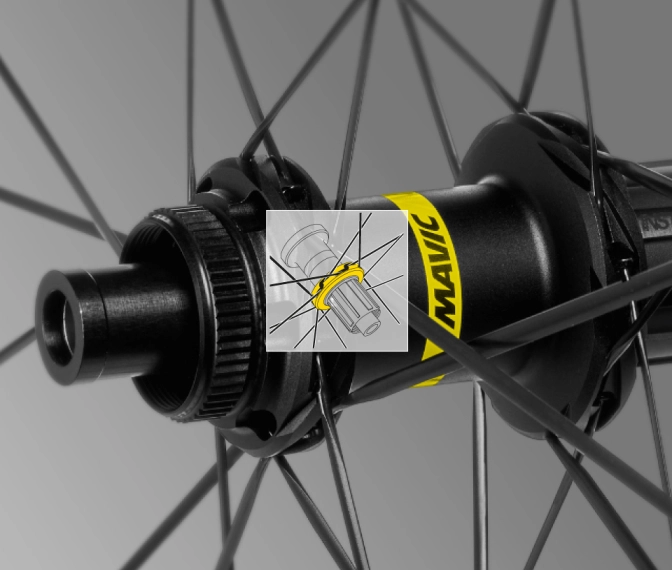

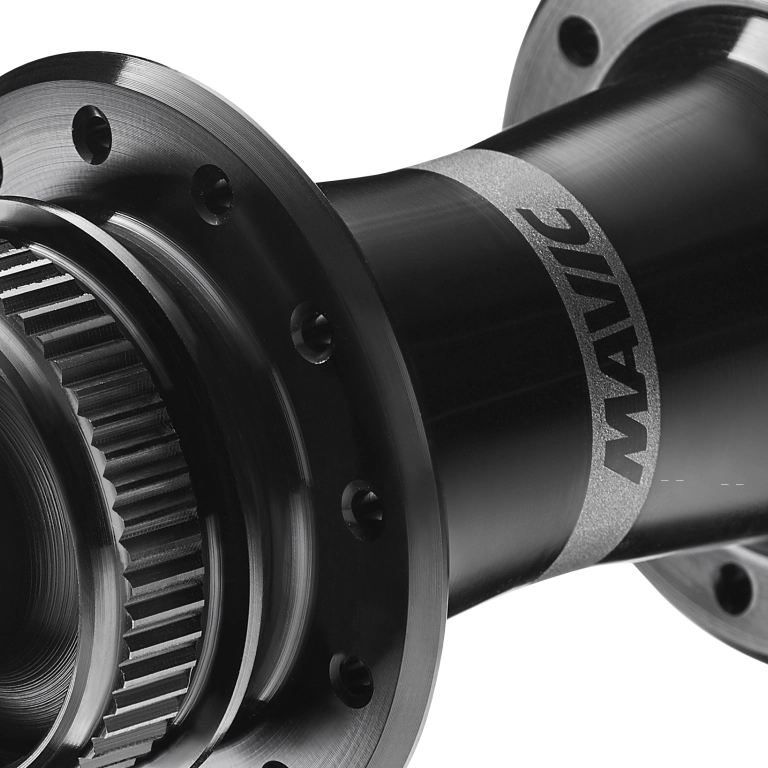

Safety ReliabilityInfinity hub design

Efficient power transfer thanks to optimised non-contact spoke lacing (no noise under load) and tension distribution. The length of the spokes at the front and rear is identical. Maintenance is easy thanks to a tool-free solution.

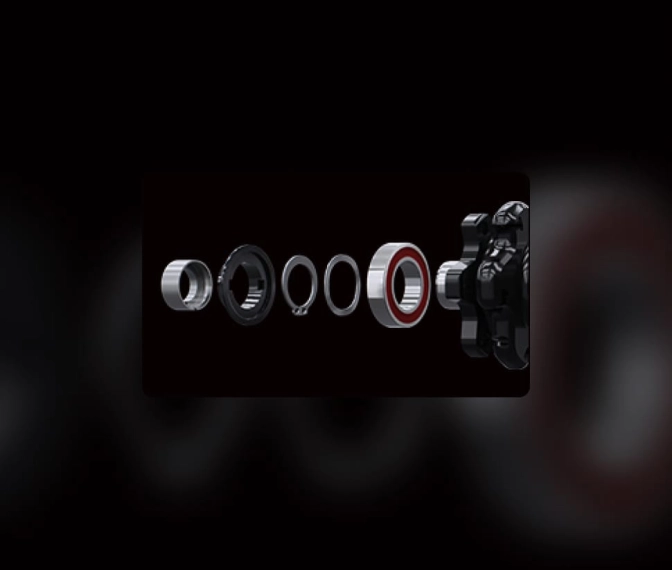

Safety ReliabilityQRM Auto bearing preload technology

Qualité de Roulements Mavic Auto. Those cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play on the long run.
