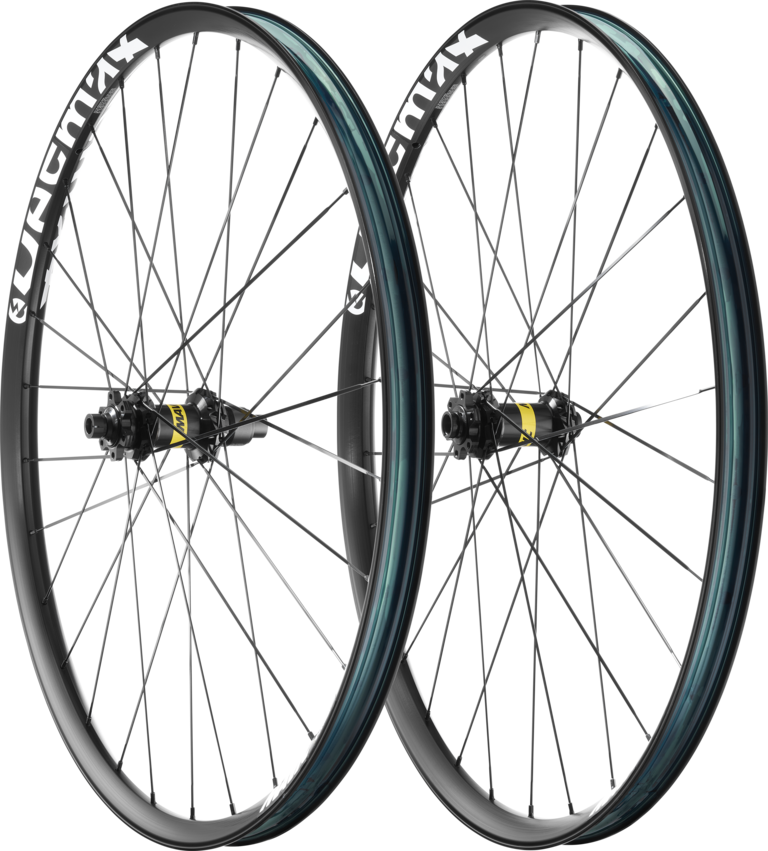

E-DEEMAX  27.5
The name E-Deemax has become a reference for E-Bike riders. This new E-Deemax lives up to its name with many of the same features and technologies as higher range model, but at a far more attainable price.

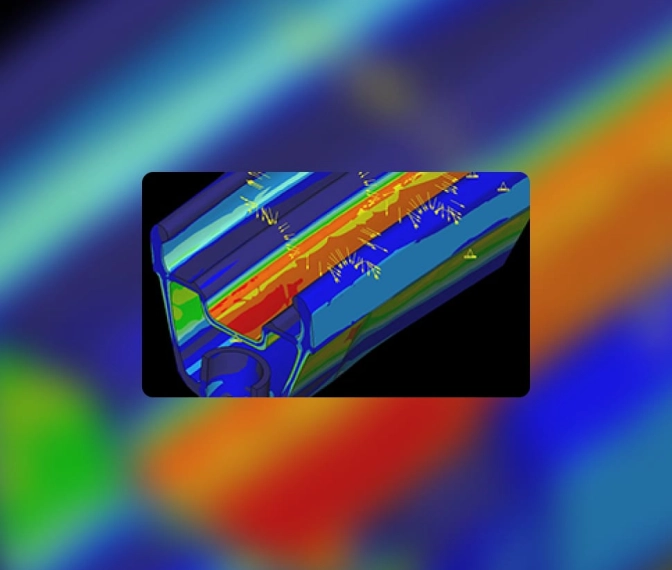

A brand new rim profile has been engineered for this new version. Now featuring a wider central channel, installing even the strongest and most rigid tyres has never been so easy.
Our exclusive Pinch Flat Protection technology (PFP) offers a wider contact surface at the top of sidewall and significantly reduces the risk of tire cuts and punctures. Thanks to PFP, the tyre can resist to 20% harder impact before being cut.
The rim is welded for added reliability and features a 30mm internal width with a Tubeless Ready compatibility to allow you to run lower tire pressure for better traction and control.

As all our E-Deemax wheelsets, this new option is lab and field validated for a max total weight of 180Kg.

This new generation of E-Deemax is laced on our brand new heavy duty Infinity 28 hub. Infinity means that only 1 spoke length is requiered for both the front and rear wheel, left and right side, and replacing a spoke can be made without removing the disc or the cassette.
The reinforced spokes should protects against damages, but in any case, each wheel is delivered with 2 spare spokes.

Our Instant Drive 360 freewheel with a double ratchet system equips the rear hub and provide fast engagement and top-level reliability.

The rear hub is compatible with Shimano HG9, Micro Spline and SRAM XD driver bodies. The E-Deemax 30 is available with 6-bolt or center lock brake rotors and is compatible with a 15x110 front axle and 12x148 rear. The wheel is delivered with valves, replacement spokes and accessories.
Available in 29'' and 27.5'', in pairs or individual for Mullet builds.

Main features

Strong and durable

Welded rim with Pinch Flat Protection (PFP) for less risk of flat
Super strong rim profile
New Infinity hub design specifically made for the rigor of E-MTB riding

Made to handle the extra power and torque of E-Bike motor

28 bladed reinforced spokes
Proven reliability of ID360 double ratchet freewheel system
Maximum load supported byt the wheel : 180kg
Steel freewheel body for improved resistance

Improved tubeless compatibility

Wider rim central channel to ease installation of reinforced tyres
Tubeless rim profile with tubeless tape makes it easy to ride tubeless tires for more traction and less risk of flat

Specifications

  • Weight Pair : 2160 g
  • Weight Front : 1016 g
  • Weight Rear : 1144 g
  • Material: Maxtal
  • Height: 22 mm
  • Joint: SUP welding technology
  • Internal width: 30 mm
  • Drilling: traditional (front/rear 28 holes)
  • Braking: disc
  • Profile: asymmetrical
  • ETRTO size: 584x30TC
  • Tire: UST Tubeless Ready - Use with Mavic Tubeless Tape
  • Material: steel
  • Shape: straight, flat, antirot (front and rear)
  • Nipples: steel, ABS, black
  • Lacing: crossed 3 (front and rear)
  • Body material: aluminium
  • Body design: INFINITY
  • Disc standard : 6 Bolts or Center Lock®
  • Axle material: aluminum
  • Axle size: front 15x110 / rear 12x148
  • Freewheel technology: Instant Drive 360
  • Freewheel: Shimano MS / Sram XD MTB
  • Bearing technology: QRM automatic setting - sealed cartridge
  • Freewheel body: convertible SHIMANO HG MTB aluminium (kit V3780101 sold separately)
  • Freewheel body: convertible SHIMANO HG MTB steel (kit V3790101 sold separately)
  • Front axle adapters: 15x110 convertible to 9x110 (kit 99694101 sold separately)
  • Front axle adapters: convertible to 15x31mm with Torque Cap (kit V2374401 sold separately)
  • Rear axle adapters: 12x148 convertible to 9x141 (kit V2510801 sold separately)
  • User guide
  • Rim tape mounted on wheel
  • UST valve not mounted on wheel
  • 2 replacement spokes with each wheel
  • Multifonction adjustment wrench with the rear wheel
  • Minimum tyre size: width 52mm - pressure max. 2.95Bar/43PSI
  • Maximum tyre size: width 76mm - pressure max. 2.45Bar/36PSI
  • ASTM category 5 : gravity riding focused on the descent
  • Maximum weight supported by the wheels: must not exceed 180 Kg (bike weight included)

Key technology

LightnessMaxtal aluminum alloy
Light and strong. Exclusive to Mavic, this specific aluminum alloy offers a higher strength to weight ratio than conventional 6106 alloy.
Efficiency RigidityInstant Drive 360 freewheel technology
The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.
Efficiency RigidityUST tubeless technology
Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.
Safety ReliabilityPinch Flat Protection sidewall (minimizes the risk of tire cuts and punctures)
20% less risk of puncture with PFP. An e-bike specific innovation to significantly reduce the risk of tire cuts and punctures.

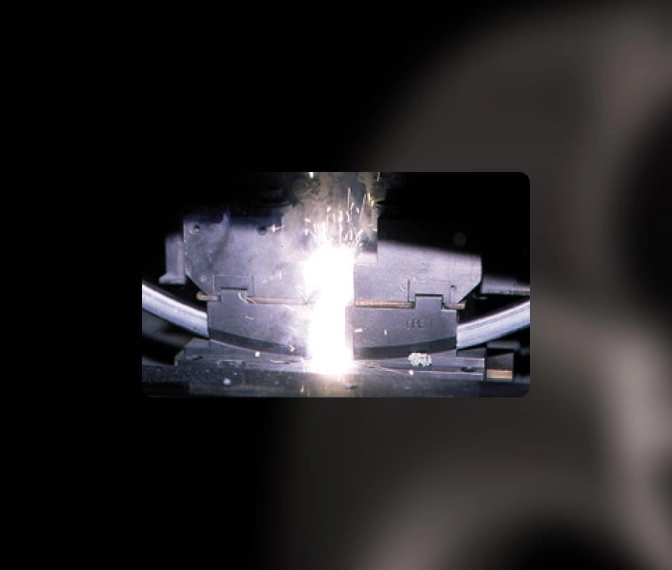

Safety ReliabilitySUP welding technology
Soudé Usiné Process, stronger and smoother joint. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.

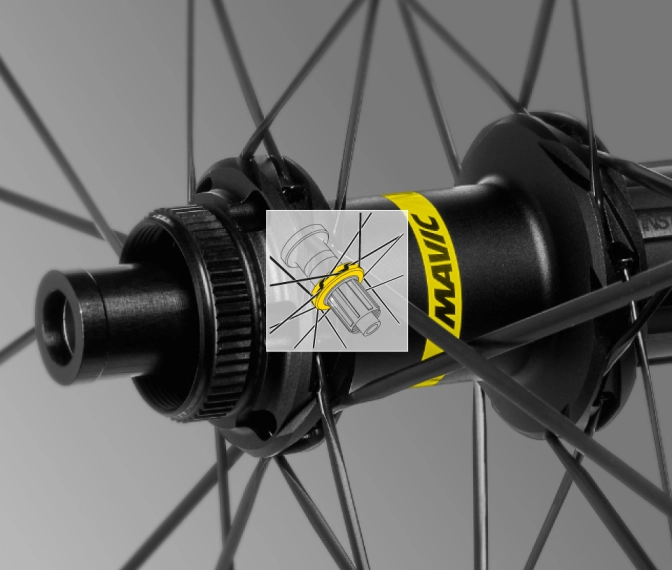

Safety ReliabilityInfinity hub design
Efficient power transfer thanks to optimised non-contact spoke lacing (no noise under load) and tension distribution. The length of the spokes at the front and rear is identical. Maintenance is easy thanks to a tool-free solution.
Safety ReliabilityQRM Auto bearing preload technology
Qualité de Roulements Mavic Auto. Those cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play on the long run.
